Silicone-Based Waterproof Coatings: Chemistry, Performance, and Applications

Introduction

Waterproof coatings are essential for protecting buildings, infrastructure, and industrial equipment from moisture-induced degradation. Among the various technologies available, silicone-based waterproof coatings have emerged as a premium solution due to their unique combination of hydrophobic properties, weather resistance, and environmental compatibility. This article provides a comprehensive overview of silicone waterproof coatings, covering their chemical basis, performance characteristics, application methods, and market trends.

1. Chemical Fundamentals

Silicone waterproof coatings are formulated primarily from polysiloxane resins—synthetic polymers with a backbone of alternating silicon (Si) and oxygen (O) atoms, with organic groups (typically methyl or phenyl) attached to the silicon atoms. This molecular structure imparts several intrinsic advantages:

• Low surface energy (≈20–24 mN/m), which creates a strong water-repellent effect.

• High flexibility due to the Si–O–Si bond angle and low rotational barrier.

• Excellent thermal stability (up to 250°C) and UV resistance.

• Breathability—the coating repels liquid water while allowing water vapor to escape, preventing blistering and substrate damage.

Modern formulations often combine silicone resins with:

• Silane coupling agents (e.g., amino-silanes) to enhance adhesion to mineral substrates.

• Nano-silica or TiO₂ particles to improve mechanical strength and self-cleaning properties.

• Organic co-resins (e.g., acrylic or polyurethane) for cost optimization and faster curing.

2. Key Performance Properties

These properties make silicone coatings particularly suitable for:

• Concrete and masonry – preventing carbonation and chloride ingress.

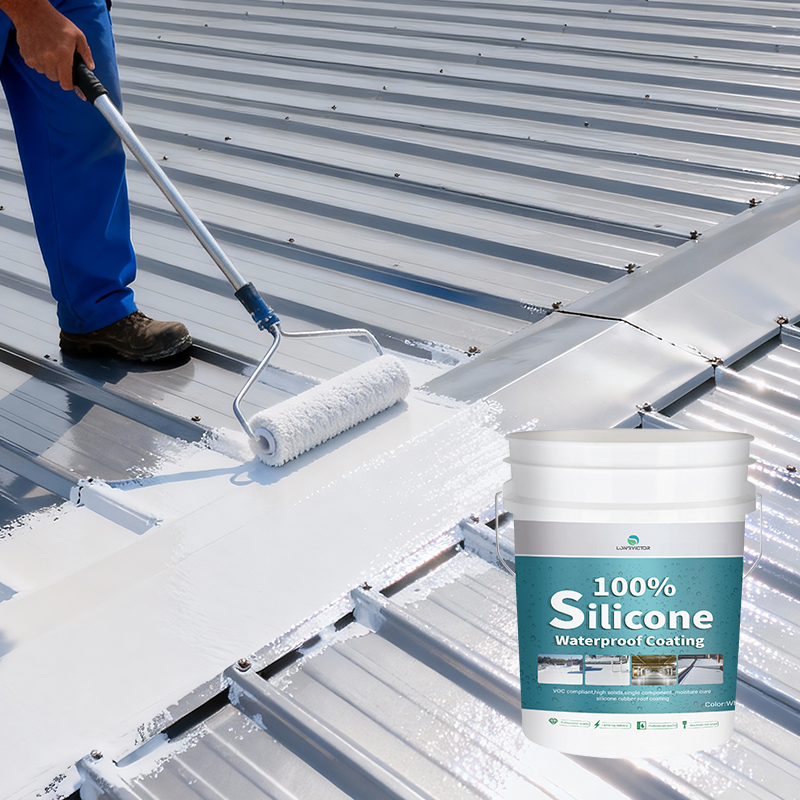

• Metal roofs – reflecting solar heat (cool-roof effect) and resisting corrosion.

• Historic buildings – providing invisible protection without altering appearance.

3. Types of Silicone Waterproof Coatings

Three main product categories dominate the market:

Water-based grades have gained significant market share in recent years due to strict VOC regulations in the EU, China, and North America.

4. Application Procedure

For optimal performance, a standard application protocol includes:

1. Surface preparation – Clean substrate (pressure washing ≤ 10 MPa), remove laitance, and repair cracks.

2. Priming – Apply a silane-based penetrating primer to consolidate loose particles (optional for dense concrete).

3. Coating application – Apply 2–3 coats by roller, brush, or airless spray (wet film thickness: 150–200 µm per coat).

4. Curing – Allow 24–72 hours at 20°C and 50% RH. Avoid rain within 6 hours.

5. Quality check – Perform water-spray test and adhesion pull-off test (≥ 1.5 MPa).

Critical note: Silicone coatings require a dry substrate (moisture content < 6%) to achieve proper adhesion. Unlike organic polymers, they do not rely on mechanical anchoring but on chemical bonding with surface hydroxyl groups.

5. Advantages Over Competing Technologies

Silicone outperforms in durability (15–25 years service life) and maintenance-free periods, offsetting its higher upfront cost.

6. Emerging Trends

• Self-healing silicone coatings – encapsulated siloxane microcapsules that release healing agents upon cracking.

• Photocatalytic silicone – incorporating TiO₂ to degrade organic pollutants and increase surface hydrophilicity under rain (switchable wettability).

• Bio-based silicone – using renewable silica sources (e.g., rice husk ash) to reduce carbon footprint.

• Smart monitoring – integrating colorimetric indicators that change hue when coating thickness diminishes.

7. Limitations and Mitigation

• High cost – mitigated by hybrid systems (silicone-acrylic blends).

• Slow initial cure – accelerated by tin-free catalysts (zirconium or aluminum chelates).

• Poor adhesion to oily or plastic substrates – resolved by plasma pretreatment or specific adhesion promoters.

8. Conclusion

Silicone waterproof coatings represent a state-of-the-art solution for long-term moisture protection, combining unparalleled weatherability, vapor permeability, and environmental safety. While their initial cost is higher than conventional alternatives, the lifecycle cost analysis often favors silicones for critical infrastructure and high-value assets. Ongoing R&D in nanotechnology and green chemistry continues to expand their functionality, positioning silicone coatings as a key pillar of sustainable building preservation.
